Transmission Transfer Case

Transfer Cases are power transmitting gear boxes used where parallel, angled or differential power transmission is needed throughout the driveline of various tracked and wheeled vehicles. Menatek have the capability to design and manufacture a variety of Transfer Cases used on different vehicles for different applications.

Angle Drive

Angle Drives are gearboxes used to direct and transmit the power of a driving unit such as a motor. Spiral bevel gears are used in Angle Drives to change the direction of the transmission by 90 degrees with respect to the driving shaft. Menatek have the capability to design and manufacture a variety of Angle Drives used on different vehicles for different applications.

Power Take-Off (PTO)

PTOs are complex gearboxes used to take power from a power source such as an engine or a transmission and transmit it to various mechanical and/or electromechanical components such as generators, pumps and etc. Menatek have the capability to design and manufacture a variety of PTOs used on different vehicles for different applications.

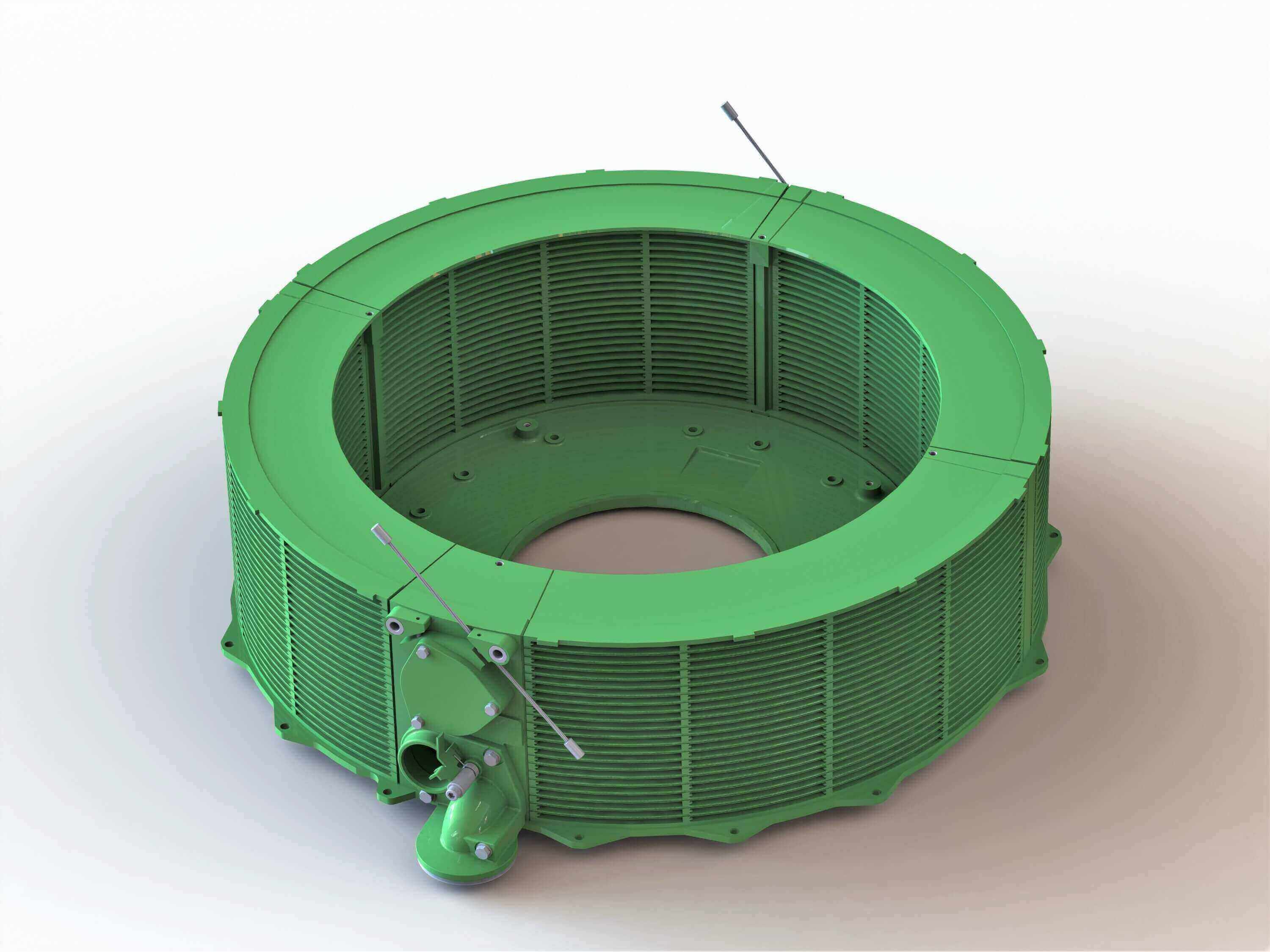

RADIATOR

Radiators are heat exchangers used for cooling internal combustion engines. Read More

TURRET DRIVE

Turret drive is the main gear box assembly that constitutes the body that delivers mechanical and hydraulic alignment force needed to turn the tank turret precisely. Menatek have the capability to design and manufacture a variety of Turret Drives used on different vehicles for different applications.

FINAL DRIVE

Final Drive is a crucial component of the running gear, located between the transmission output shaft and sprocket assembly. The purpose of the final drive is to provide the final stage of gear reduction to decrease RPM and increase torque before the power is transmitted to the track shoes. Menatek Defense Technologies have capability to manufacture and test various Final Drives used on well-known vehicles such as M48 MBT, M60 MBT, M88 Recovery Vehicle, M2 Bradley IFV, M109 Howitzer, M113 APC and others.

ROAD WHEEL

Road Wheels are other important components of running gear which create the interference between the support arm and the track assembly. They are basically metal rims vulcanized with a tough rubber around. Constantly working under high pressure and friction, the rubber’s recipe and adhesion strength to the rim are key points to Road Wheel production. Menatek have the capability to produce a variety of Road Wheels which are used on well-known vehicles such as M48 MBT, M60 MBT, M88 Recovery Vehicle, M1 Abrams MBT, M2 Bradley IFV, M109 Howitzer, M113 APC and more.

SHOCK ABSORBER

Shock absorber is a suspension component which damps jounce and rebound motion of the road arms & wheels. There are two major types of shock absorbers which are used on military vehicles; linear dampers and rotary dampers. Duty of both types is to absorb energy by dissipating it. Menatek Defense Technologies is capable to supply shock absorber which is used on well-known vehicles such as M48 MBT, M60 MBT, M88 Recovery Vehicle, M1 Abrams MBT, M2 Bradley IFV, M109 Howitzer, M113 APC and more.

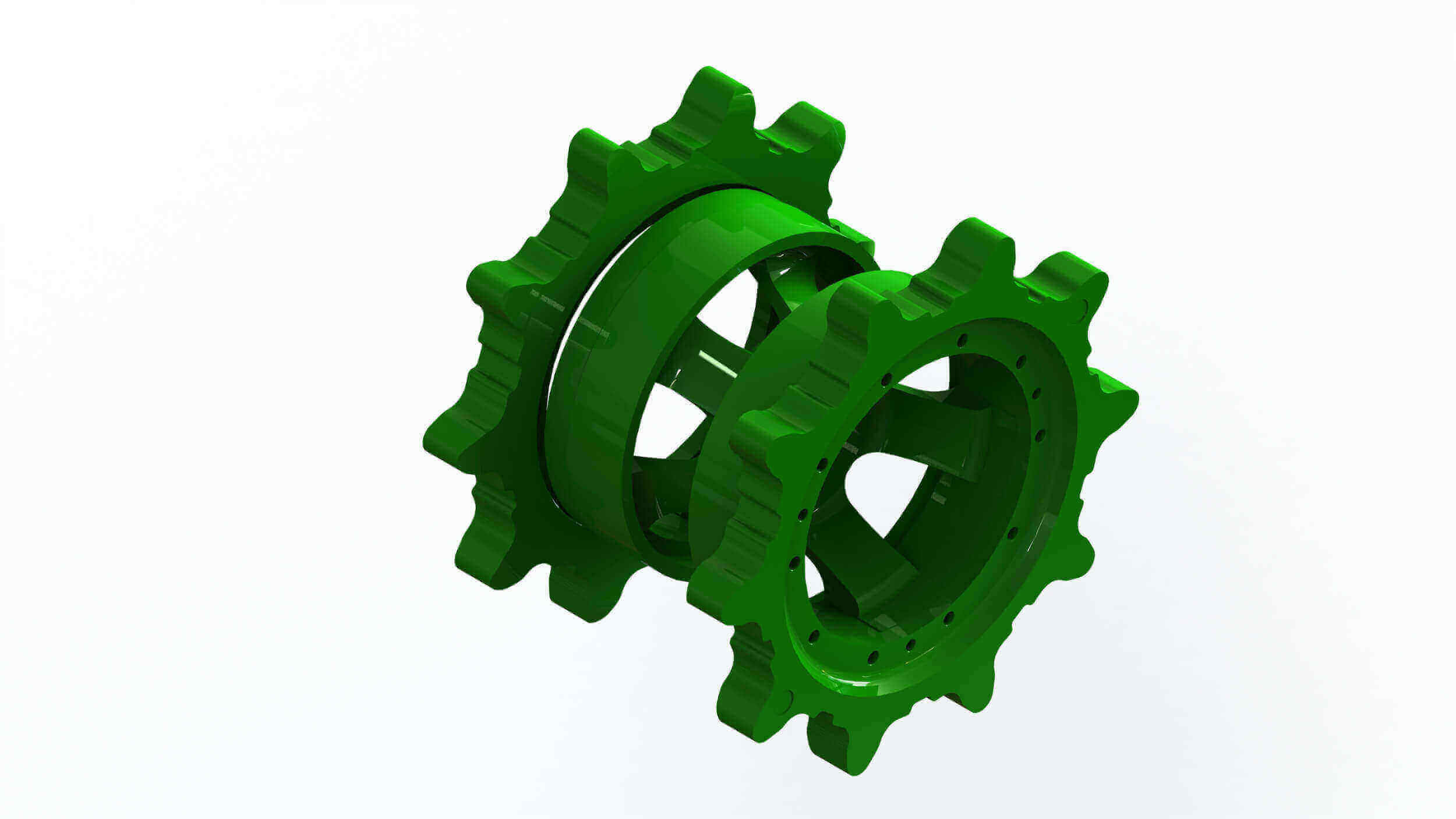

Sprocket Assembly

Sprocket assembly is a component of running gear of military tracked vehicles which takes role in driving the track assembly. It conducts the torque from final drive to track assembly. It is consist of two different main parts; (2ea) sprocket gear and sprocket carrier. Menatek Defense Technologies are capable of manufacturing sprocket wheel and sprocket carrier which are used on well-known vehicles such as M48 MBT, M60 MBT, M88 Recovery Vehicle, M1 Abrams MBT, M2 Bradley IFV, M109 Howitzer, M113 APC and more.

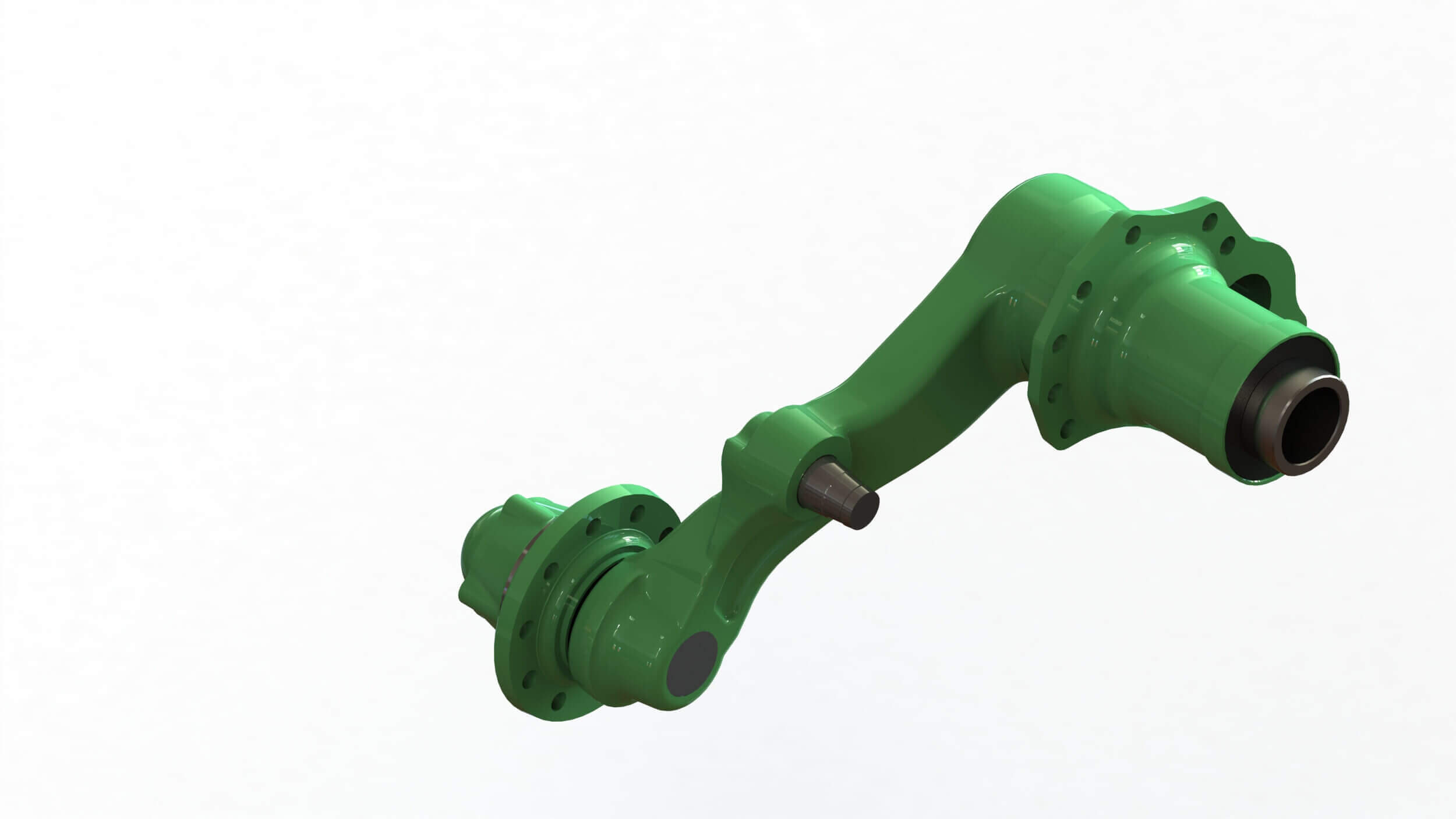

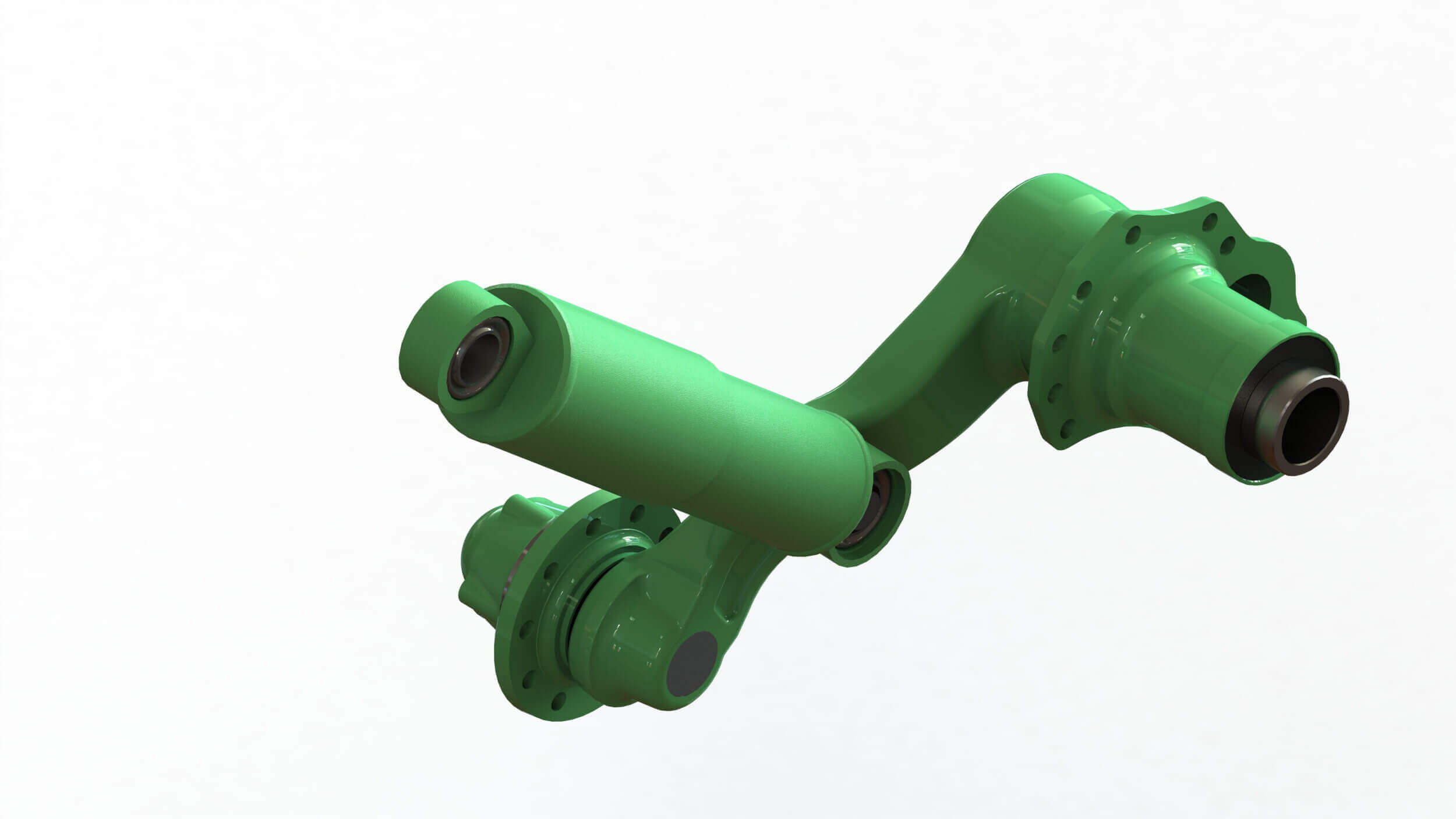

SUPPORT / Road Arm ASSEMBLY

Support Assembly is the main component of the suspension system which enables movement of wheel and takes role in conducting the displacement of wheel into other suspension components such as rotary damper, shock absorber or torsion bar. Menatek have manufactured a variety of support assemblies which are used on AAV, M109 Paladin, M2 Bradley, M88, M113 and more. Menatek is capable of designing and manufacturing arm assemblies in accordance with the customer requirements and military specifications.

TORSION BAR

Torsion bar is one of the most crucial part belong to running gear of military tracked vehicles. It is basically a spring which works under torsional load. Menatek Defense Technologies have been working on torsion bars since 2010 and the efforts of the Menatek team had turned into proficiency on manufacturing torsion bars. Menatek, now, can design and manufacture torsion bars for different platforms such as AAVs, IFVs, MBTs according to vehicle specifications. In the past 2 years, Menatek have made vital investments and taken the most critical manufacturing processes in-house in order to deliver the highest quality possible.Read more

TRACK ADJUSTER

Track Adjuster is an important component which adjusts the tension of track assembly by collapsing and extending when needed. Track adjuster works together with the idler assembly to provide the right amount of flexibility for the track assembly. Menatek have capability to design and manufacture a variety of track adjusters which are used on well-known vehicles such as M48 MBT, M60 MBT, M88 Recovery Vehicle, M1 Abrams MBT, M2 Bradley IFV, M109 Howitzer, M113 APC and more.

TRACK ASSEMBLY

Track Assembly is a unique component which provides the vehicle mobility. By transmitting the torque coming from the final drive into directional movement, it enables the tracked platforms to move in almost all types of terrain. Track assembly composes of center guide, track shoe links and each links are connected with end connectors. Menatek have the capability to produce a variety of track assemblies which are used on well-known vehicles such as M48 MBT, M60 MBT, M88 Recovery Vehicle, M1 Abrams MBT, M2 Bradley IFV, M109 Howitzer, M113 APC and more.
